Anti-Crash Automatic Rising Bollards with Electric Hydraulic System
Retractable traffic safety parking system featuring anti-crash automatic security hydraulic rising bollards for enhanced perimeter protection and access control.
Technical Specifications
| System Control |
Electric Hydraulic |
| Material |
SS304 Stainless Steel |
| Power Supply |
220V |
| Rising Height |
600mm to 1000mm |
| Bollard Diameter |
168mm, 219mm, 273mm, 324mm |
| Bollard Thickness |
6mm to 20mm |
| LED Light Color |
Optional |
| Up Time |
3s to 6s adjustable |
| Down Time |
3s to 6s adjustable |
| Minimum Loading Capacity |
80T |
Product Images
Key Features
Electric-hydraulic operating system
Maximum passing pressure: 80T to 120T trucks
Voltage: AC220V 50Hz Integrated
Power: 300W Integrated
Up time: 3-6 seconds adjustable
Down time: 3-6 seconds adjustable
Working temperature: -65℃ to 75℃
Storage environment: -10℃ to 65℃ (water-proof, damp-proof, dust-proof)
Material: 304 stainless steel construction
Rising height: 600mm standard, maximum 1000mm
Bollard thickness: 6mm standard (8mm, 10mm, 12mm, 20mm optional)
Diameter: 219mm standard (168mm, 273mm, 324mm optional)
Structure: Load-bearing steel beam column, anti-collision steel beam column, 4 navigation rods
Integrated electrical mechanism: 600mm stroke, 60mm cylinder outer diameter, 16mm rod diameter
6k mirror tube finish
LED lighting options available
Reflective sticker: 2 strips included
Link-control interface for system integration
Manual lowering capability during power outages
IP68 rated for maximum environmental protection

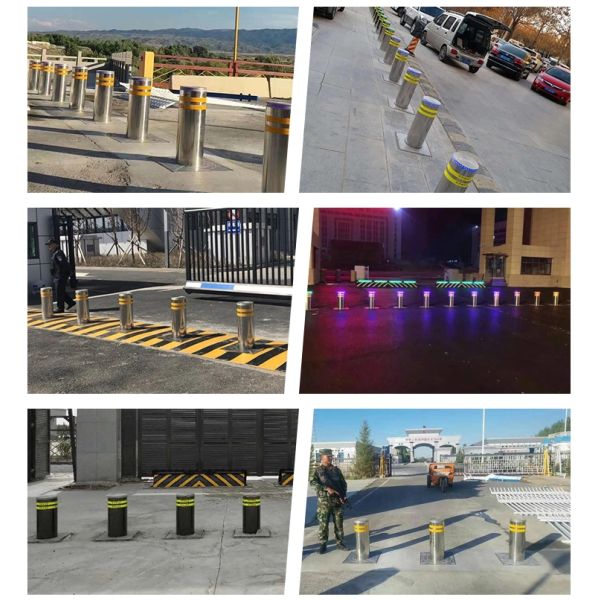

Case Reference
About Shenzhen Sinomatic

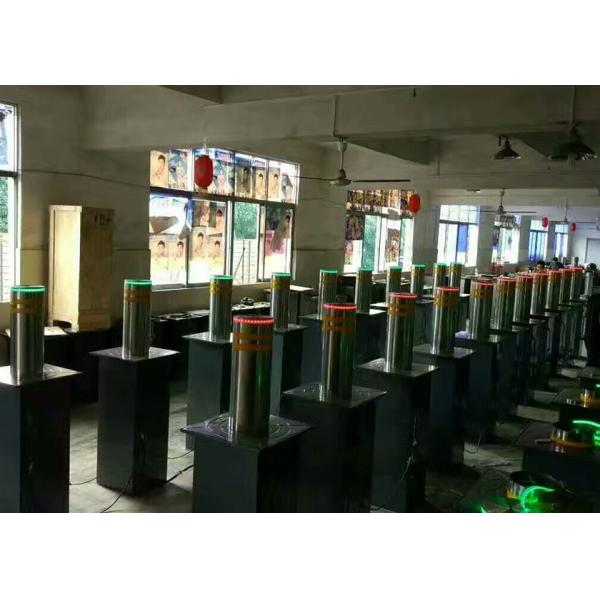

Located in Shenzhen, China, our manufacturing facility spans approximately 4,700 square meters and is equipped with modern production lines, powder coating facilities, development departments, and processing centers.
Our products are widely used in transportation roads, schools, government agencies, airports, prisons, installations, customs, border control, parks, smart cities, and various other fields.
We leverage our knowledge, experience, manufacturing capabilities, and design expertise to offer greater flexibility than other manufacturers, providing custom solutions with short lead times and excellent value. Our business focuses on delivering highly resistant and durable products at reasonable prices, with extensive customization and system integration options.
With exceptional cost-performance in overseas markets, our products are exported to Europe, the US, East Asia, Russia, and Middle Eastern countries. Advanced technology meets the highest international quality standards, with comprehensive design, superior technological standards, and exceptional corrosion protection earning customer trust worldwide while maintaining competitive pricing.
Our company has experienced rapid growth in recent years and now employs more than 100 skilled professionals.
