Roller Wheel DC Electromechanical WIFI function Optional Swing Gate Opener PK600GL

  • 1
  • 2

Brand Name : SINOMATIC

Model Number : PK600GL

Certification : CE/ ISO

Place of Origin : Shenzhen, China.

MOQ : Sample order accepted

Price : Negotiable

Payment Terms : T/T, Western union, Visa, MasterCard, PayPal, Stripe, PayPal_BNPL, Apple pay, Google pay, Pix, OXXO, Billie, Online Transfer etc.

Supply Ability : 10,000 pcs per month

Delivery Time : 5-10 working days after payment received

Packaging Details : Carton/Pallet

Control System : Microprocessor-based

Work Temperature : -40°C~55°C

Gate Length : Max 4 meters

Motor Power : 40Wx2

Work Duty : S2 30min

Remote Control Mode : Single button/Four button mode

Remote Control Distance : 30m

Remote Control Frequency : 433.92MHz

Contact Now

Roller Wheel DC Electromechanical WIFI Function Optional Swing Gate Opener PK600GL
Product Overview
The PK600GL Roller Wheel Swing Gate Automation Kit is designed for powering the opening and closing motion of gates weighing up to 600kg with a maximum length of 4 meters per leaf. This professional-grade system utilizes a rotating gear mechanism for smooth gate operation and must be installed within private property boundaries.
Installation Requirements
  • Swing gate must be correctly installed and move smoothly by hand before automation installation
  • With electronic lock: Maintain 15-20mm distance between gates
  • Without electronic lock: No specific distance requirement between gates
  • Power cable must connect to RCD-protected weatherproof outlet near gate opener
  • Control box must be installed at least 1.5m above ground to prevent accidental activation
  • Post-installation verification of mechanical functionality, gate movement smoothness, and sensor alignment required
Technical Specifications
Unit Model PK600GL
Power Supply AC220V/50Hz; AC110V/60Hz
Maximum Gate Weight 400-600kg per leaf
Motor Power 40W
Driving Method Linkage
Limit Switch No limit switch
Max Speed 1.75rpm
Max. Single-Leaf Length 4 meters
Operating Cycle 15 seconds per 90° (approx.)
Remote Control Range ≥30m
Recording of Up Remotes 32
Frequency 433.92MHz
Work Duty S2 30min
Working Temperature -20℃ to +50℃
Package Weight 18kg
Key Features
  • Flexible installation: 2 openers or 1 opener with single control box
  • Ground wheels for effective ground stop positioning
  • Travel time protection with standard 30-second open function
  • Optional auto-close function
  • Soft start and slow stop technology for smooth operation and low noise
  • Automatic remote control learning capability
  • Keypad and single button interface options
  • Alarm lamp, photo beam & safety beam interface compatibility
  • Available with articulated arm or sliding arm configurations
  • Manual key release design for emergency operation
Standard Package Contents
  • 2 gate motors
  • Control board & box
  • 2 remote controls
  • Manual release key
  • User manual
  • Bolts & nuts
Roller Wheel DC Electromechanical WIFI function Optional Swing Gate Opener PK600GL

Product Tags:

WIFI swing gate opener



electromechanical gate operator with warranty



roller wheel DC gate opener


Quality Roller Wheel DC Electromechanical WIFI function Optional Swing Gate Opener PK600GL for sale

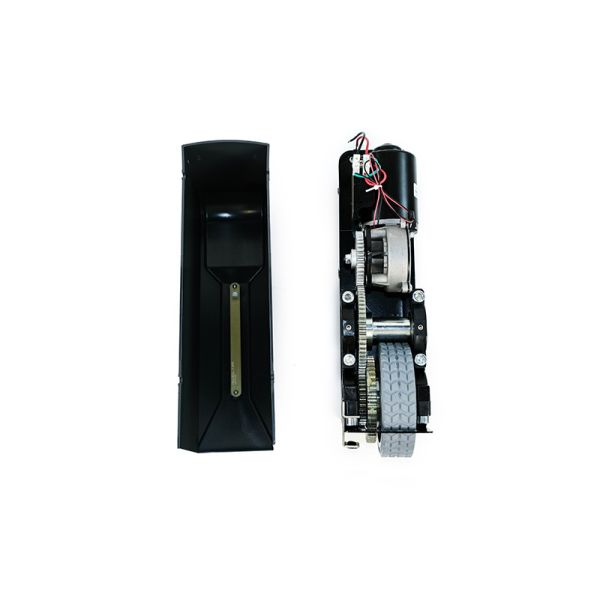

Roller Wheel DC Electromechanical WIFI function Optional Swing Gate Opener PK600GL Images
